Kumo 2.5 FPV Drone

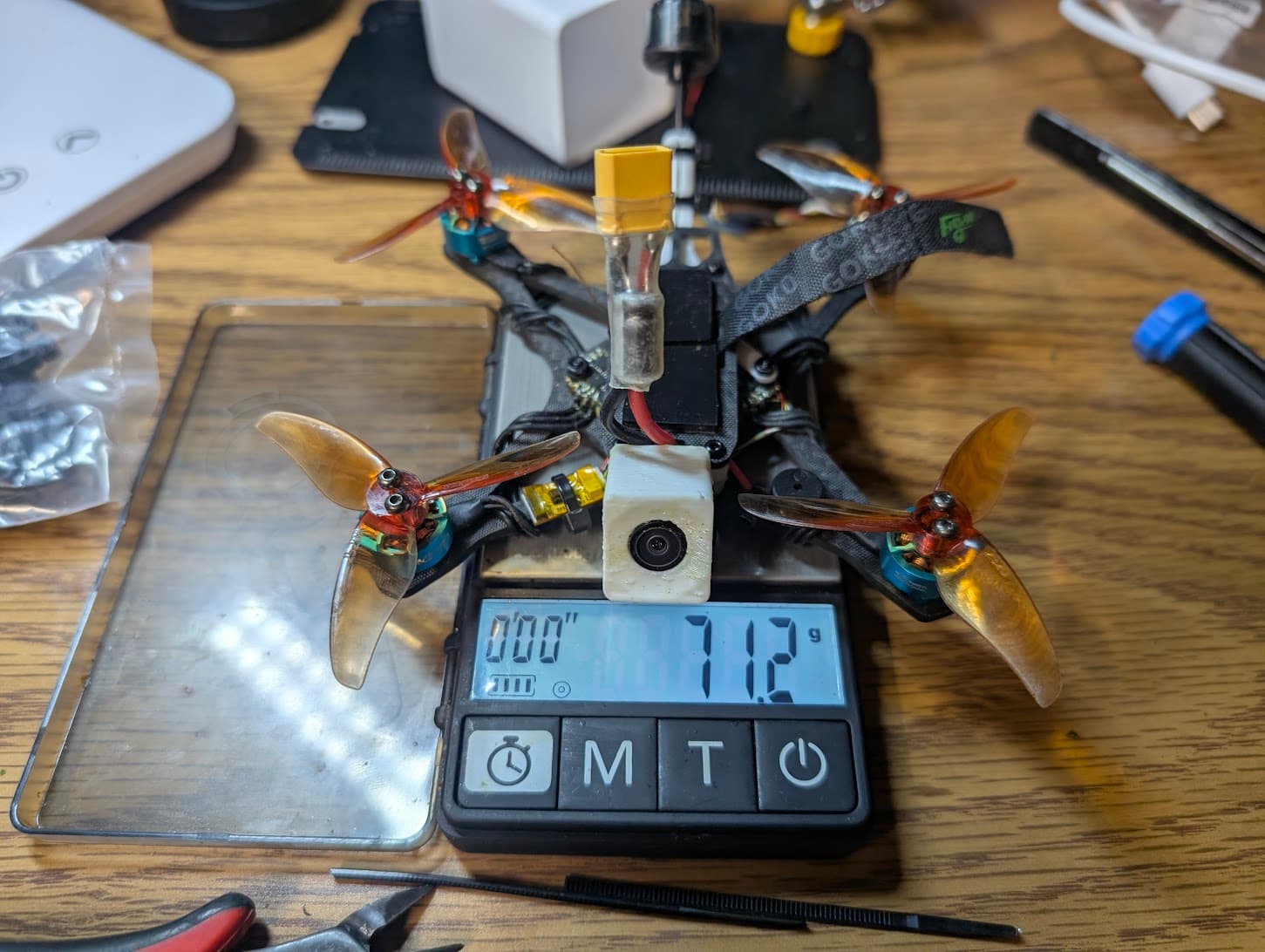

A 2.5-inch star-shaped dual-arm drone frame for 2S freestyle quads, available as printable STL files and carbon fiber cut files.

3D preview converted from github.com/kumoishibo/Kumo-2.5 at f3103fe, under CC-BY-4.0. View the original files from GitHub (14.7 MB) (opens in a new tab)

What it can do

Written by Robotheca from the project's documents.

Serves as a 2.5-inch freestyle quad frame built around the HDZero AIO15 flight controller and Lux camera.
Star-shaped dual-arm frame designed for wind resilience and crash survivability.
Camera mount designed for HDZero Lux at 25 or 35 degrees, compatible with Kayoumini mounts.
Available as 3D printable (PETG-CF, TPU parts) and carbon fiber cut files in STL and CAD formats.

This repository has no parts list Robotheca can read yet.

The guide appears here as you scroll.

Guide by @kumoishibo (README.md), under CC-BY-4.0.

Notes written by Robotheca from the project's documents.

The HDZero AIO15 is mounted in a frame cutout that keeps its ports accessible.
The camera mount holds the Lux camera on the front of the frame.
The battery lead exits through a cutout at the front of the top plate.
Wires are routed through the space left by 8-12mm standoffs between the slam deck and the frame.
