MOSS

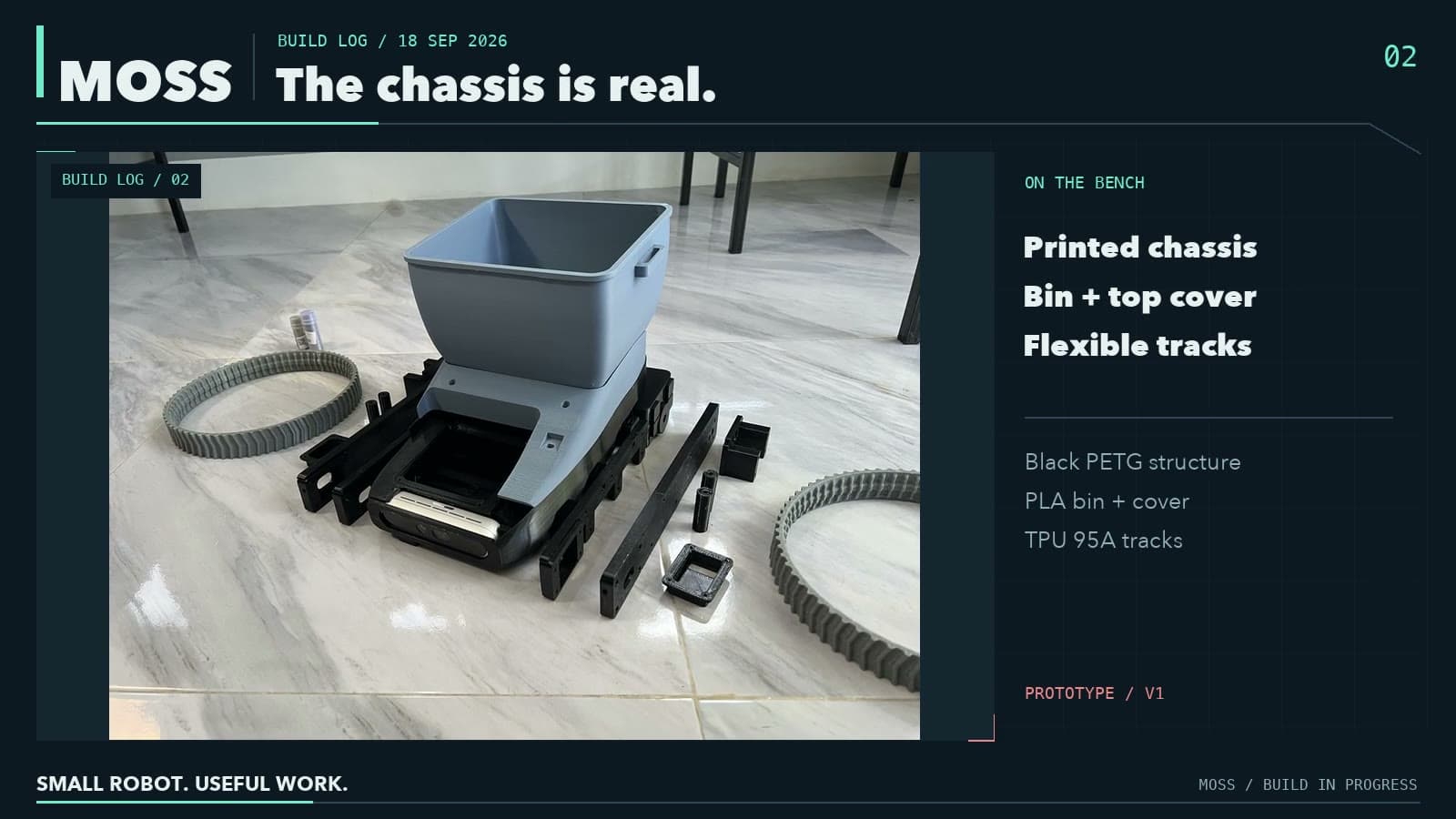

A small, mostly 3D-printed litter-picking rover with a tracked base, a bin, and an SO-101-derived arm with a parallel gripper.
- Wheeled
- Open source
- 3D printable
Suggested by Robotheca, created by @metrox-eth (opens in a new tab), from github.com/metrox-eth/moss (opens in a new tab). Pinned to commit dd6ae9b (opens in a new tab).
- Hardware license
- CERN-OHL-S-2.0 (opens in a new tab)
- Software license
- Apache-2.0 (opens in a new tab)
- Commercial use
- Allowed
This repository contains executable files that Robotheca doesn't check. Only run them if you trust the creator.
Which files (10 scripts)
- benches/hygiene_selftest.sh (opens in a new tab)
- benches/hygiene.sh (opens in a new tab)
- benches/run_all.sh (opens in a new tab)
- firmware/MOSS_QTPY_MDD3A/bench/flash_qtpy.sh (opens in a new tab)
- firmware/MOSS_QTPY_MDD3A/bench/watch_start.sh (opens in a new tab)
- tools/arm_speed_guard.sh (opens in a new tab)
- tools/moss-fly.sh (opens in a new tab)
- tools/moss-jbl-connect.sh (opens in a new tab)
- tools/moss-pulse-test.sh (opens in a new tab)
- tools/moss-teleop.sh (opens in a new tab)
Bill of materials
47 parts47 of 47 parts shown
| # | Component | Quantity | Est. price | Supplier |
|---|---|---|---|---|
| 1 | Adafruit QT Py ESP32-S3, 8 MB flash, no PSRAM, ref.5426 | 1 | – | – |
| 2 | Adafruit Terminal Block BFF, ref.6495 | 1 | – | – |
| 3 | Adafruit INA219 STEMMA QT, ref.904 | 1 | – | – |
| 4 | STEMMA QT cable, 300 mm, ref.5384 | 1 | – | – |
| 5 | Cytron MDD10A Rev2 dual motor driver | 1 | – | – |
| 6 | Waveshare Bus Servo Adapter A | 1 | – | – |
| 7 | MAX98357A amplifier module | 1 | – | – |
| 8 | Speaker, 3 W, 4 ohm | 1 | – | – |
| 9 | Acoustic splash membrane and compatible adhesive | 1 | – | – |
| 10 | JGB37-520, 12 V, 90:1, 110 rpm, Hall encoder, 6 mm D-shaft | 2 | – | – |
| 11 | 625 bearing | 12 | – | – |
| 12 | 608 bearing | 4 | – | – |
| 13 | 626 bearing | 4 | – | – |
| 14 | LK05 — shaft collar, 5 mm bore, Ø10 × 5 mm | 12 | – | – |
| 15 | LK06 — shaft collar, 6 mm bore, Ø11 × 5 mm | 2 | – | – |
| 16 | LK08 — shaft collar, 8 mm bore, Ø16 × 8 mm | 4 | – | – |
| 17 | Smooth steel axle, 5 ×70 mm finished length | 6 | – | – |
| 18 | Smooth steel axle, 6 ×77 mm finished length | 2 | – | – |
| 19 | Smooth steel axle, 8 ×87 mm finished length | 2 | – | – |
| 20 | Rigid motor-to-shaft coupling, 6 mm bores | 2 | – | – |
| 21 | HEX12 metal wheel hub, 6 mm bore, 18 mm length | 2 | – | – |
| 22 | ST3215 12 V serial bus servo | 5 | – | – |
| 23 | CF35-12 constant-force gripper servo | 1 | – | – |
| 24 | 3010 fan, 12 V | 2 | – | – |
| 25 | Magnet, 20 ×10 ×2 mm | 4 | – | – |
| 26 | Small two-part epoxy adhesive kit, two tubes (resin + hardener) | 1 | – | – |
| 27 | M3 brass heat-set insert, OD4 mm, length 6 mm | 11 | – | – |
| 28 | 12-cell battery pack, 3S4P, with BMS | 1 | – | – |
| 29 | 12.6 V CC/CV charger for the selected 3S pack | 1 | – | – |
| 30 | Emergency stop LA16-11ZS/A, 16 mm | 1 | – | – |
| 31 | KCD11 two-pin rocker switch and splash cover | 1 | – | – |
| 32 | Inline blade-fuse holder, 14 AWG | 1 | – | – |
| 33 | ATC blade fuse, 15 A | 1 | – | – |
| 34 | Amass XT30 male/female connector pair | 6 | – | – |
| 35 | DC panel socket, 5.5 ×2.1 mm | 2 | – | – |
| 36 | DC male barrel plug — computer power branch | 1 | – | Supplier: buy DC male barrel plug — computer power branch, opens in a new tab |
| 37 | DC male barrel plug, 5.5 × 2.1 mm — servo power branch | 1 | – | Supplier: buy DC male barrel plug, 5.5 × 2.1 mm — servo power branch, opens in a new tab |
| 38 | DC male barrel plug, 5.5 × 2.1 mm — battery extension | 1 | – | – |
| 39 | Wire, ferrules and heat-shrink | 1 | – | – |
| 40 | Plugable USB hub, model USB2-2port | 1 | – | – |
| 41 | USB-C to USB-A cable, 30 cm | 3 | – | – |
| 42 | RealSense camera cable | 1 | – | Lazada product link · RealSense option only.: buy RealSense camera cable, opens in a new tab |
| 43 | NVIDIA Jetson Orin Nano Super Developer Kit | 1 | – | – |
| 44 | OR Raspberry Pi5 with its cooler, storage and appropriate 5 V supply | 1 | – | – |
| 45 | Intel RealSense D455 OR Orbbec Gemini 2 | 1 | – | – |
| 46 | SLAMTEC RPLIDAR C1 | 1 | – | – |
| 47 | Wrist USB camera for the R30 mount | 1 | – | – |
47 of 47 parts have no price in the source, so there is no parts total. Read from BOM.md at the pinned commit.
