Electric Sheep Humanoid Robot Platform V1

Open-source humanoid robot platform presented at the 2019 RoboCup competition in Sydney, built for RoboCup play.

  • Humanoid
  • Open source
  • Works with AI

Suggested by Robotheca, created by @electric-sheep-uc (opens in a new tab), from github.com/electric-sheep-uc/black-sheep (opens in a new tab). Pinned to commit e908203 (opens in a new tab).

Fork on GitHub (opens in a new tab)Download the files at this commit (.zip)
Hardware license
MIT (opens in a new tab)
Software license
MIT (opens in a new tab)
Commercial use
Allowed

This repository contains executable files that Robotheca doesn't check. Only run them if you trust the creator.

Which files (7 files marked executable, 65 scripts, 30 programs or installers)

Photo and 3D model

Electric Sheep Humanoid Robot Platform V1, photo from its repository
Photo:@electric-sheep-uc (opens in a new tab)MITsource file (opens in a new tab)

3D preview converted from github.com/electric-sheep-uc/black-sheep at e908203, under MIT. View the original files from GitHub (25.3 MB) (opens in a new tab)

What it can do

Written by Robotheca from the project's documents.

  • The Electric Sheep humanoid robot platform, as presented at the 2019 RoboCup competition in Sydney, Australia.
  • Vision processing is noted in the readme as something to be added at a later date, so it is not yet available.
  • The documents do not describe specific movements or tasks the robot performs beyond being a humanoid platform.

Works with AI

Found by Robotheca in the project's files at commit e908203, its robot.yaml and Robotheca's notes on its documents. Never guessed; Robotheca doesn't run the code.

Bill of materials

This repository has no parts list Robotheca can read yet.

Build guide

The creator's steps, each with its instructions.

  1. 1Review the circuit design and BOM
  2. 2Review the hardware design and BOM
  3. 3Assemble the platform
  4. 4Compile the source code
  5. 5Run the code

The guide appears here as you scroll.

Guide by @electric-sheep-uc (readme.md), under MIT.

More guides

Wiring and electronics

Notes written by Robotheca from the project's documents.

Main parts

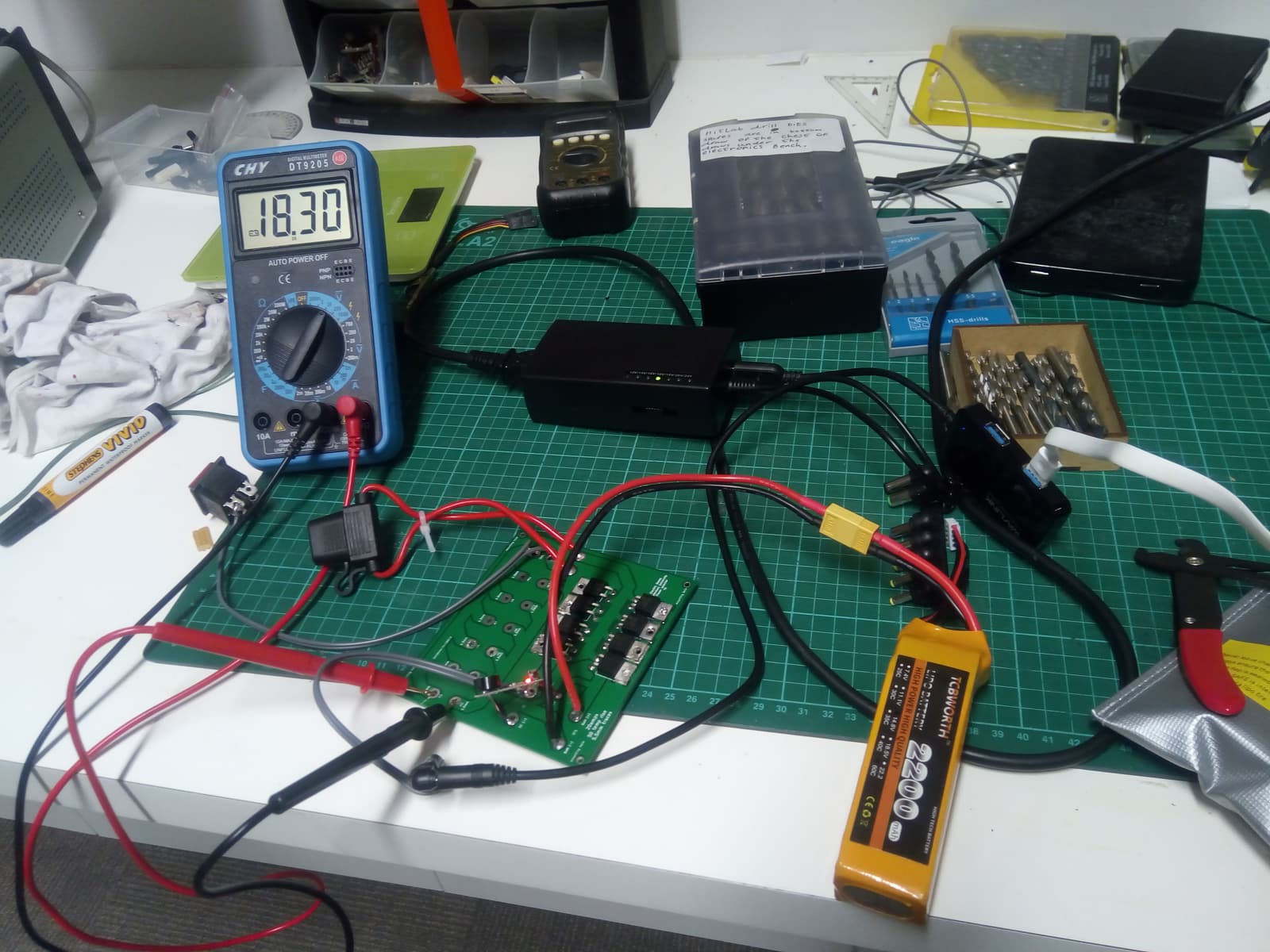

  • A circuit design and bill of materials are referenced in the readme, with a KiCad power selector board and Gerber files in the repository.
  • Hardware design uses OpenSCAD models for 3D-printed parts, with motors mentioned as having inaccuracies that a second version will reduce.
  • The documents do not name specific controller boards, motors, sensors, batteries or power supplies.

Connections

  • The documents do not describe how the electronic parts are connected to each other.
