Stack-chan

A JavaScript-driven, super-kawaii desktop robot built on the M5Stack platform, with open-source firmware, MODs, and printable cases.

  • Other
  • Open source
  • Works with AI
  • 3D printable

Suggested by Robotheca, created by @stack-chan (opens in a new tab), from github.com/stack-chan/stack-chan (opens in a new tab). Pinned to commit a01f520 (opens in a new tab).

Fork on GitHub (opens in a new tab)Download the files at this commit (.zip)
Hardware license
Apache-2.0 (opens in a new tab)
Software license
Apache-2.0 (opens in a new tab)
Commercial use
Allowed

This repository contains executable files that Robotheca doesn't check. Only run them if you trust the creator.

Which files (7 scripts)

Photo and 3D model

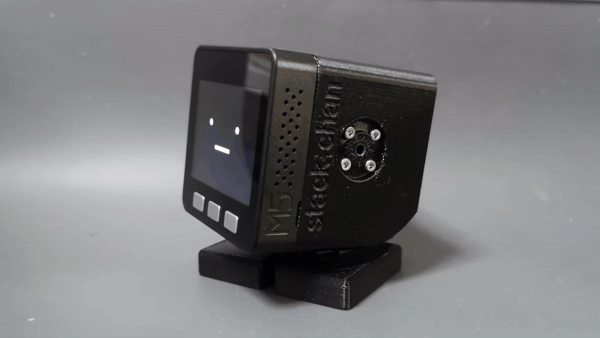

Stack-chan, photo from its repository
Photo:@stack-chan (opens in a new tab)Apache-2.0source file (opens in a new tab)

3D preview converted from github.com/stack-chan/stack-chan at a01f520, under Apache-2.0. View the original files from GitHub (15.0 MB) (opens in a new tab)

What it can do

Written by Robotheca from the project's documents.

  • Stack-chan is a JavaScript-driven desktop robot with a face display, built around M5StackChan CoreS3 as its standard configuration.
  • User applications called MODs run on the robot and can be created with a block editor or in code.
  • Firmware for M5Stack, M5Stack Core2, and M5Stack CoreS3 is distributed, and Stack-chan RT and Takao Core2 with SG90 servos can be built from source.
  • Browser tools support flashing firmware, changing Wi-Fi and device preferences over BLE, running MODs in a simulator, and BLE face and hand tracking via MediaPipe.
  • The block editor can compose speech, expressions, posture, and singing, and can run MODs in a simulator or write them to the device.
  • A Shape face editor arranges eyes, eyelids, and a mouth to create a custom face.

Works with AI

Found by Robotheca in the project's files at commit a01f520, its robot.yaml and Robotheca's notes on its documents. Never guessed; Robotheca doesn't run the code.

Bill of materials

This repository has no parts list Robotheca can read yet.

Build guide

The guide appears here as you scroll.

Guide by @stack-chan (README.md), under Apache-2.0.

More guides

Wiring and electronics

Notes written by Robotheca from the project's documents.

Main parts

  • M5StackChan CoreS3 is the standard controller board.
  • M5Stack Basic, Core2, and CoreS3 are listed as supported boards for the firmware.
  • Servo motors drive the pan and tilt movement, and the schematic describes an M5 pan-tilt board.
  • An optional joystick remote controller is available for the M5StackChan package.

Connections

  • The repository includes a KiCad schematic and PCB layout for the M5 pan-tilt board, with Gerber files for manufacturing.
  • A diagram shows how the SCServo cable connects in the case documentation.
  • The documents do not describe the detailed pin-level wiring.
