K.A.D Ballers: Genie Firefighter Robot

A tele-operated four-wheel mecanum robot that clears debris and places water gel cubes in the Genie Firefighter game using a three-servo manipulator controlled over Bluetooth.

  • Wheeled
  • Open source
  • arduino
  • 3D printable

Suggested by Robotheca, created by @Kushal-Sachdeva78 (opens in a new tab), from github.com/Kushal-Sachdeva78/K.A.D-Ballers-Genius-Olympiad (opens in a new tab). Pinned to commit e8a6d7d (opens in a new tab).

Fork on GitHub (opens in a new tab)Download the files at this commit (.zip)
Hardware license
MIT (opens in a new tab)
Software license
MIT (opens in a new tab)
Commercial use
Allowed

Photo and 3D model

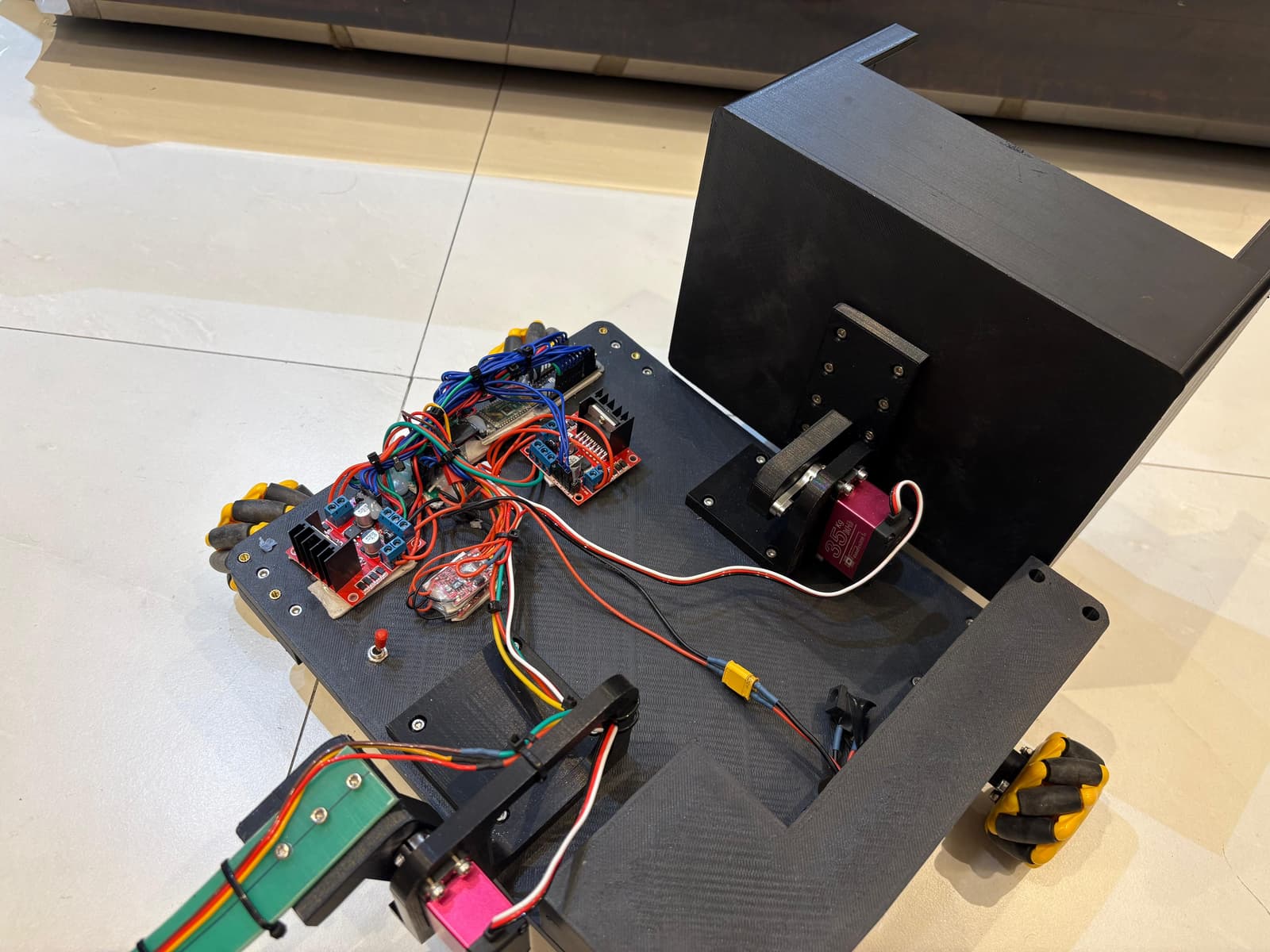

K.A.D Ballers: Genie Firefighter Robot, photo from its repository
Photo:@Kushal-Sachdeva78 (opens in a new tab)MITsource file (opens in a new tab)

3D preview converted from github.com/Kushal-Sachdeva78/K.A.D-Ballers-Genius-Olympiad at e8a6d7d, under MIT. View the original files from GitHub (3.5 MB) (opens in a new tab)

What it can do

Written by Robotheca from the project's documents.

  • Four-wheel mecanum drive for forward, backward, strafe, diagonal and rotation movement, with each diagonal command driving two of the four motors.
  • Three-servo manipulator: arm sweeps smoothly between down and up, gripper opens and closes, basket flips to dump collected objects.
  • Driven wirelessly over Bluetooth with single-character commands from a phone controller app.
  • Built to clear debris and place water gel cubes in the Genie Firefighter game zones.

Bill of materials

This repository has no parts list Robotheca can read yet.

Build guide

The guide appears here as you scroll.

Guide by @Kushal-Sachdeva78 (README.md), under MIT.

Wiring and electronics

Notes written by Robotheca from the project's documents.

Main parts

  • Arduino Nano microcontroller.
  • HC-05 Bluetooth module on a software serial port at 9600 baud.
  • Four 12V 50 RPM DC motors with mecanum wheels.
  • Two L298N dual H-bridge motor drivers.
  • Three high-torque metal gear servos.
  • 12V battery with a buck converter stepping down to 5V for logic and servos.

Connections

  • The HC-05 connects to the Arduino Nano through a software serial port.
  • The 12V battery supplies the motors, and a buck converter provides 5V for the logic and servos.
