3D Model Documentation

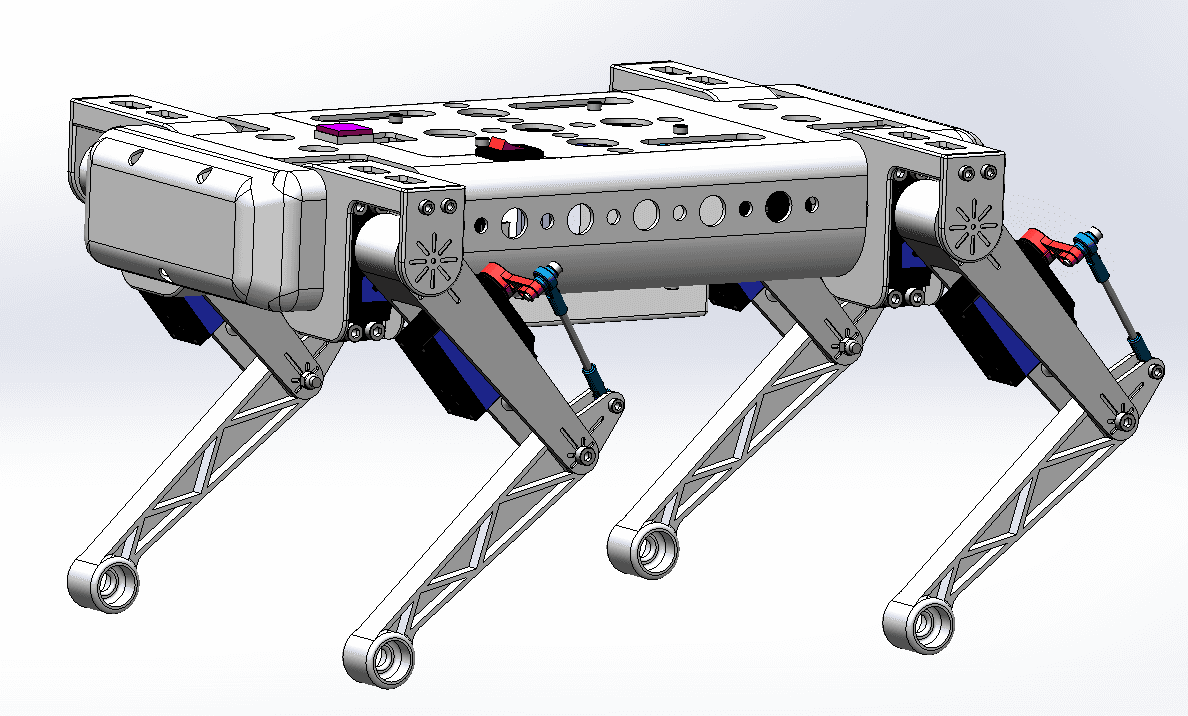

The 3D models used in this project are based on the SPT5425 servo version, featuring 12 servos, with each servo priced at around 70 RMB, resulting in a relatively high overall cost. Taobao link (for reference only) (opens in a new tab)

Quadruped_Robot_Model.STEP is the corresponding STEP format file.

Original model (SolidWorks 2019) download link: https://pan.baidu.com/s/1EVniczHE6NO68WBZ6jarPw (opens in a new tab) Extraction code: nt8v
Additionally, the following are lower-cost iterative versions, though with reduced overall performance.

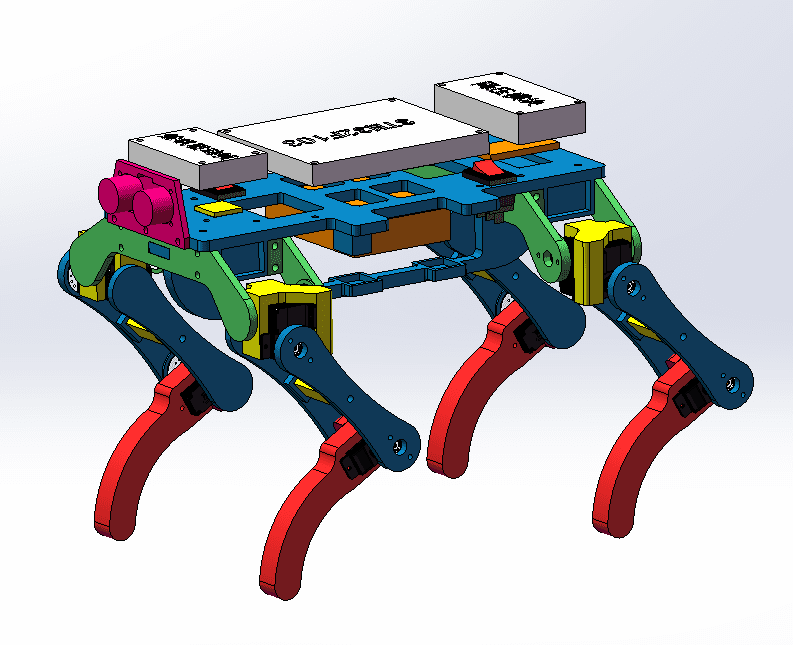

- SCS0009 servo version model, with each servo priced at around 38 RMB. SolidWorks 2019 version download link: https://pan.baidu.com/s/1cAEqWpKtOTWmSGVl0khZVw (opens in a new tab) Extraction code: w0jo
- MG90S servo version model, with each servo priced at around 10 RMB. SolidWorks 2019 version download link: https://pan.baidu.com/s/1UsPqu-OiglWM5PlEbBo1Vw (opens in a new tab) Extraction code: l3h5
