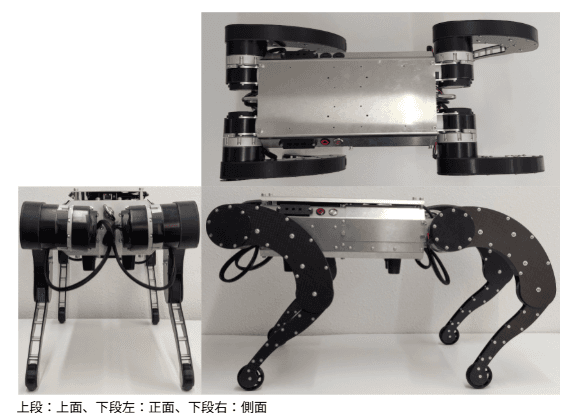

Completed Photos

Picture: Mujina_model01.png Picture: Mujina_model02.png

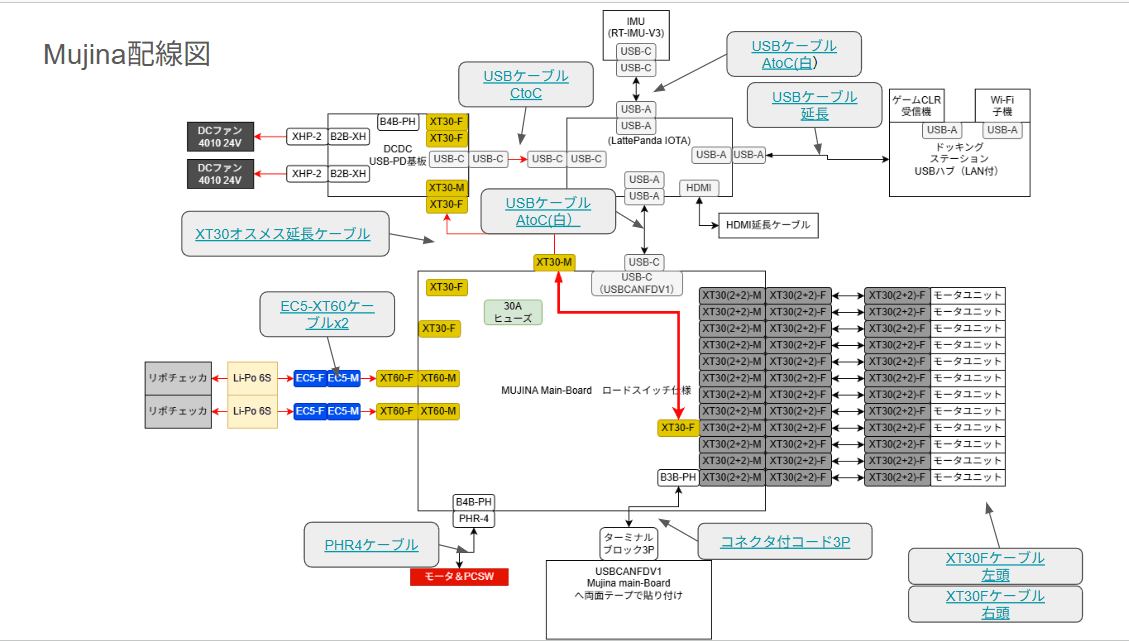

Wiring Diagram

Picture: Mujina_cable_layout.png

Notes on Assembly

Motor ID Writing and Firmware Update

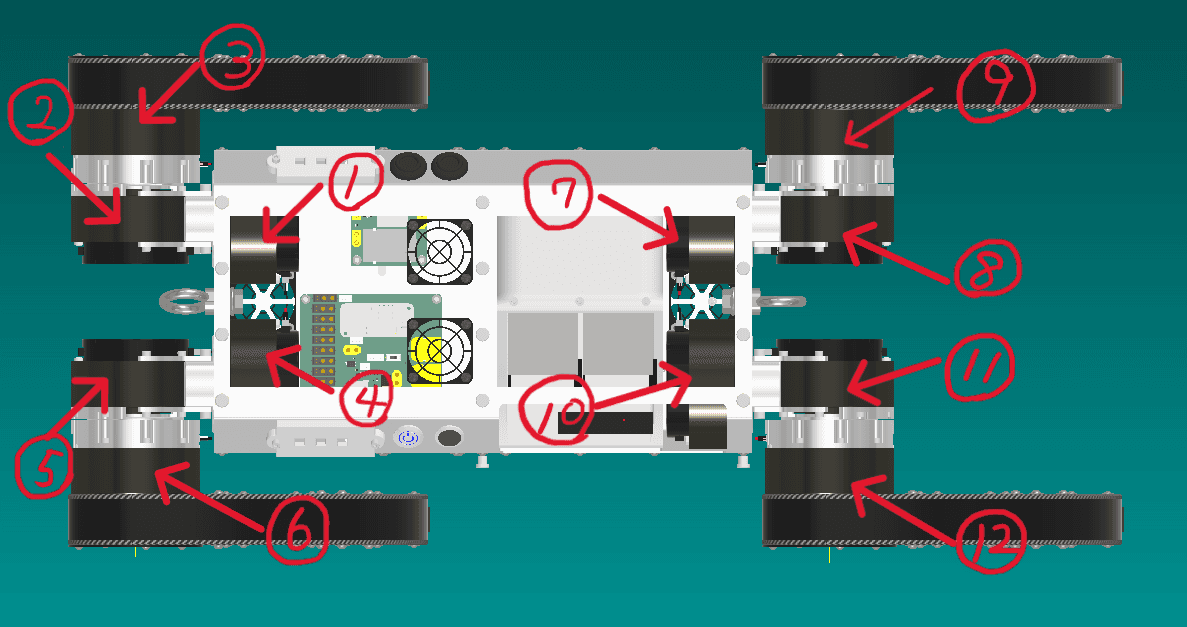

Mujina's motor ID assignments are shown in the image. For writing IDs and updating firmware, see 「motor_tool.md」. Picture: mujina_motorID.png

Writing Firmware

The USB-output 9-axis IMU sensor module V3 (opens in a new tab) and the 「WeAct」USB-CANFD interface (opens in a new tab) require firmware to be written. See 「firmware.md」, and after writing, install them into the robot body.

Picture: imu.jpg Picture: usbcan.JPG

Preparing the LATTEPANDA IOTA

Mujina has a built-in 「LATTEPANDA」 (opens in a new tab). Before assembly, refer to the README of Mujina_ros (opens in a new tab) and set up the PC.

Setting AUTO Power ON
- By default, the LATTEPANDA is powered on with the switch on the side of the unit. Since it is built into the body, you need to configure it to start automatically when power is applied. The official "Auto Power-On" documentation is here (opens in a new tab).

Picture: APO.png

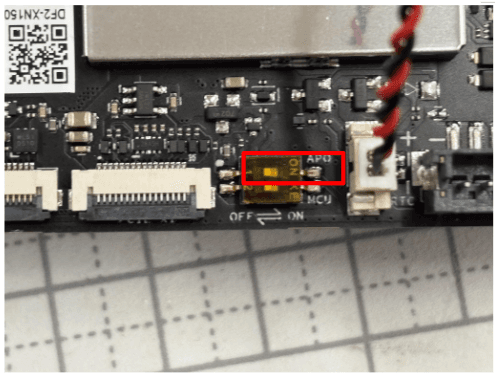

Turning on the switch outlined in red in the photo starts the PC at the same time power is applied.

For installation into Mujina, see lattepanda.md.

Wiring

For wiring inside the Mujina body, motor cables, and similar connections, see cable.md.

※Insulate the XT30 (2+2) connectors of any motors that do not have motor cables connected.

Picture: cable_build16.JPG
