Wheel-Leg Controller Section
This code is developed based on Esp32WheelLeg (opens in a new tab), and we would like to express our gratitude to open-source contributor Skythinker616 (opens in a new tab) for their work.
Description

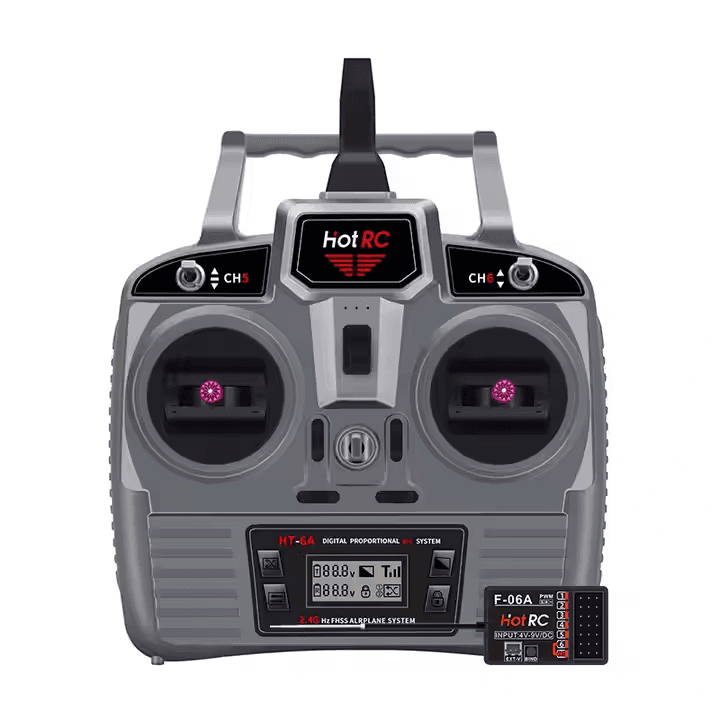

This project uses the DJI RoboMaster Development Board C as the main control board, develops using the FreeRTOS real-time system, and employs the onboard BMI088 gyroscope. The remote controller is the HOT-RC HT-6A.
Hardware Connection

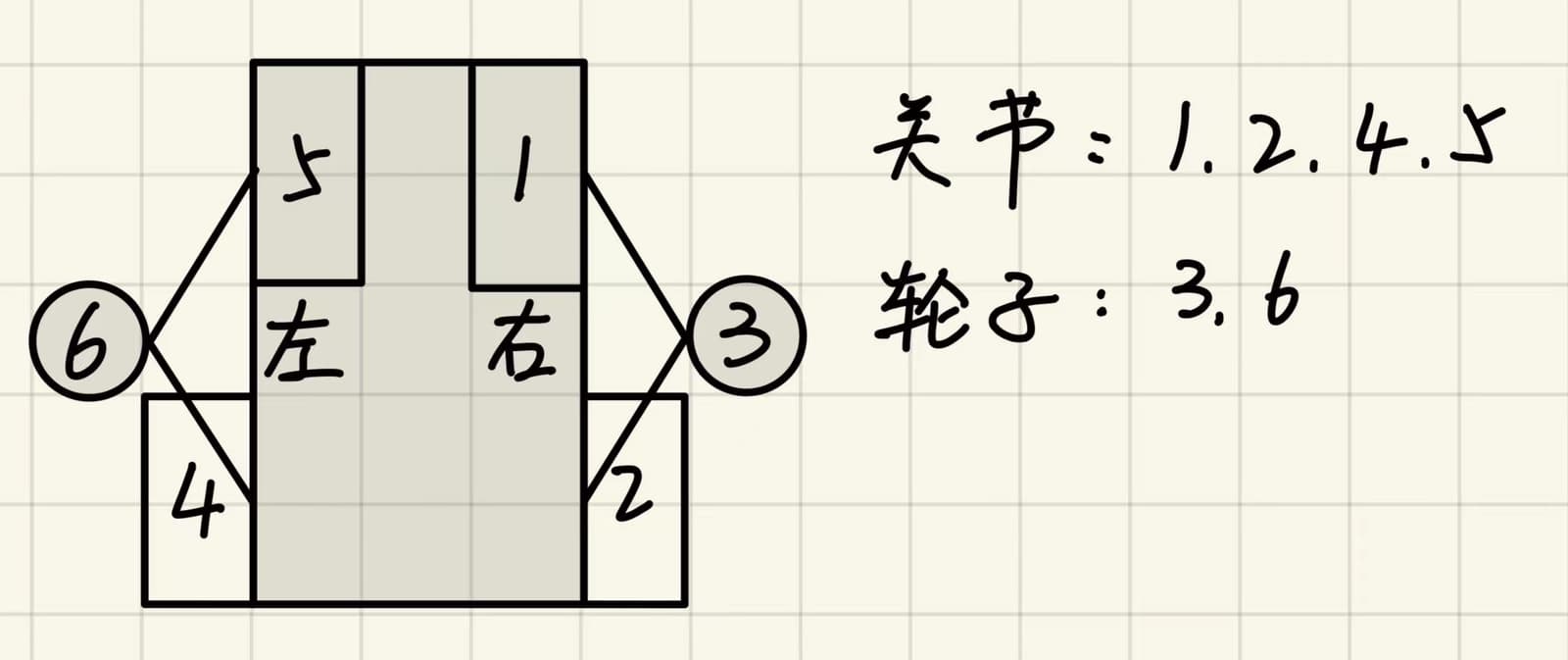

Six motors are connected to a single bus via a distribution board, which in turn connects to the main control board. The CAN IDs of the motors are assigned as follows:
Gyroscope Installation Method

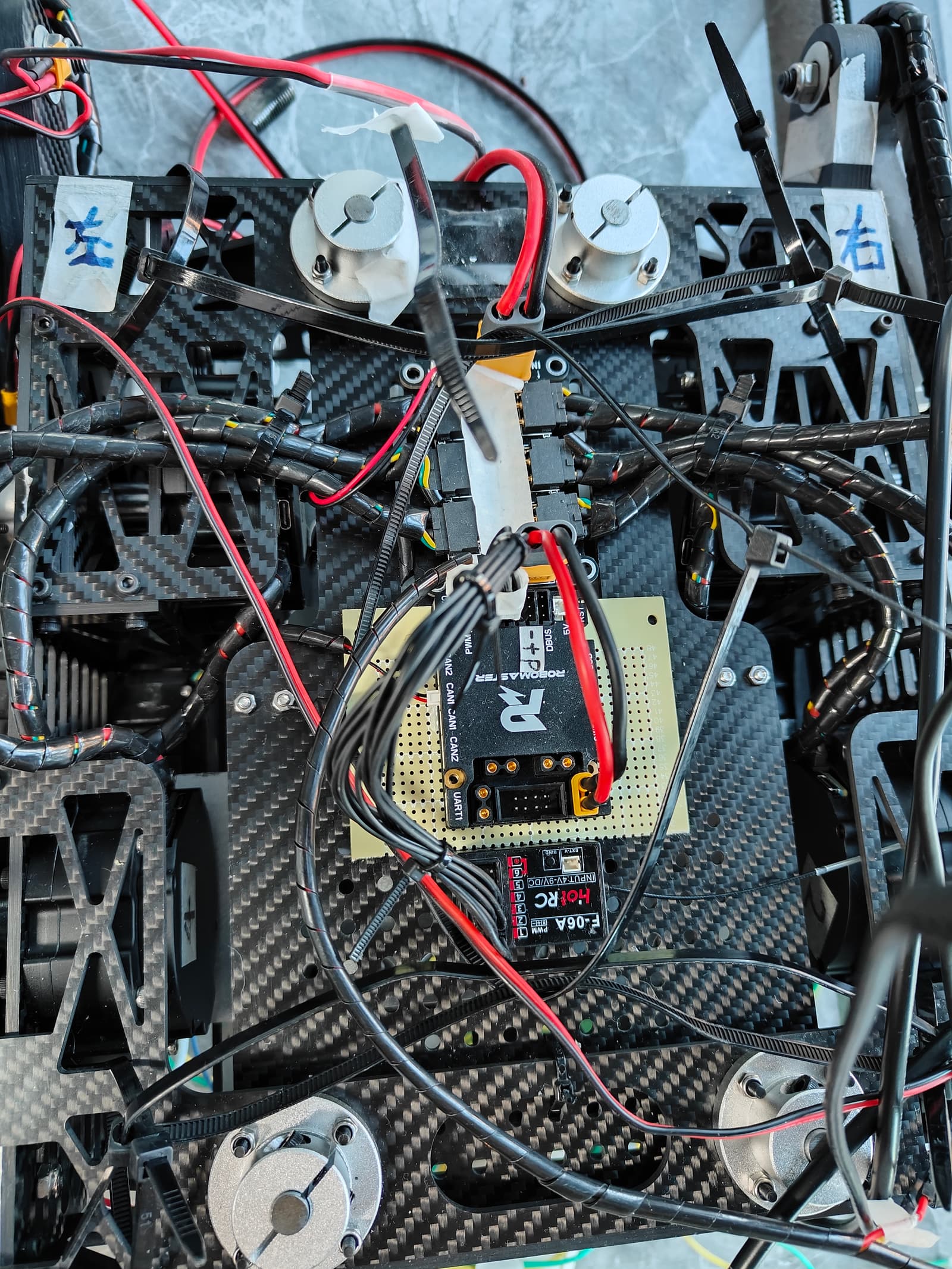

The installation position of the gyroscope in this program differs from the mechanical reserved mounting holes. The specific installation position is as follows (the lines are a bit messy -_-||):
Program Block Diagram

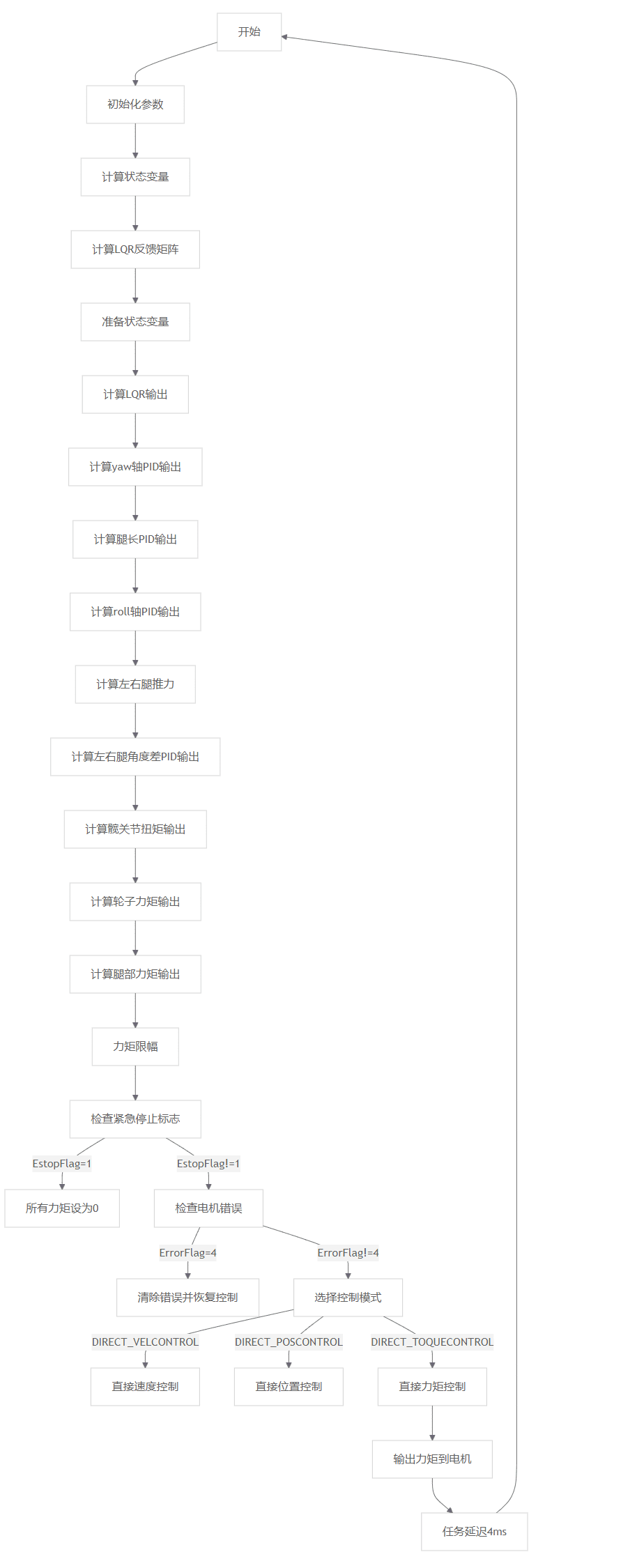

Main program block diagram
