Harness Documentation
This directory provides the RP1 harness BOM, 43 PDF fabrication drawings, and the production specifications.
| Resource | Content |
|---|---|
| RP1_Harness_BOM.xlsx | Name, wire gauge, connectors, terminals, and quantity for 42 harnesses |
| Fabrication drawings | Harness fabrication drawings |
| Main controller power wire drawing | 18AWG soft silicone wire, XT30 male connector, finished length 120±5 mm |
| Harness production specification.docx | Production process, termination requirements, and inspection methods |
To find a drawing, look it up by harness name. ARM_10线材 corresponds to ARM_10_信号线.pdf.

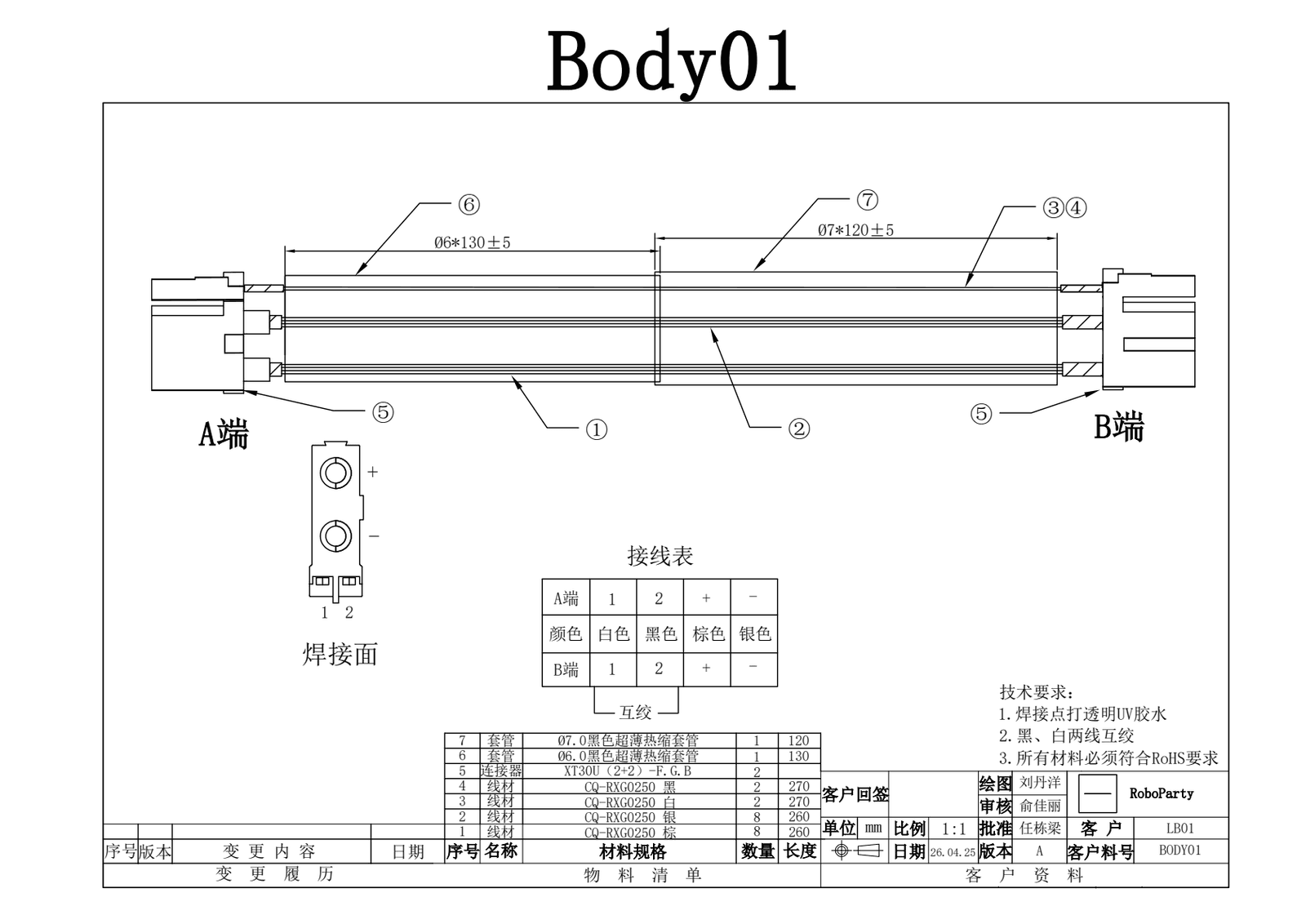

BODY01 Drawing
For the materials needed to configure the complete machine, see the complete machine BOM.
