Jetson Nano Mouse Circuit Diagram
The Jetson Nano Mouse has received a minor board update in lots shipped since around spring 2021.

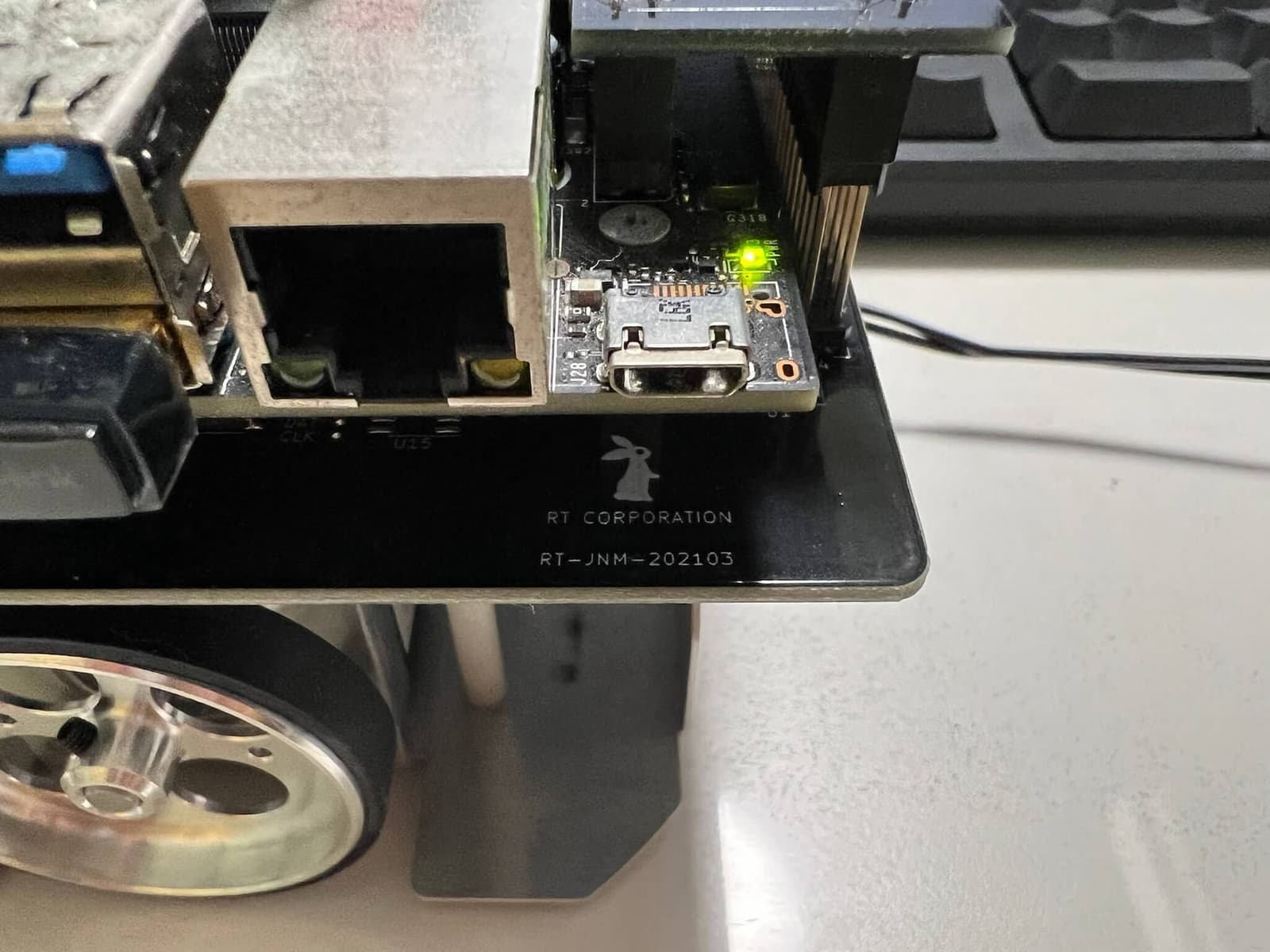

You can check the board version by looking at the silkscreen printed on the board under the Jetson Nano's microUSB port.
- Circuit diagram for boards marked
RT-JNM-202003:JetsonNanoMouse-v1-20200324.pdf - Circuit diagram for boards marked
RT-JNM-202103:JetsonNanoMouse-v1-20210215.pdf
