ESP-Drone

A small drone platform based on Espressif ESP32/ESP32-S2/S3 microcontrollers with Wi-Fi control and multiple flight modes.

  • Drone
  • Open source
  • 3D printable

Suggested by Robotheca, created by @HoneyGrant (opens in a new tab), from github.com/HoneyGrant/UAV (opens in a new tab). Pinned to commit 6a6fb32 (opens in a new tab).

Fork on GitHub (opens in a new tab)Download the files at this commit (.zip)
Hardware license
GPL-3.0-only (opens in a new tab)
Software license
GPL-3.0-only (opens in a new tab)
Commercial use
Allowed

This repository contains executable files that Robotheca doesn't check. Only run them if you trust the creator.

Which files (9 scripts, 6 firmware images)

Photo and 3D model

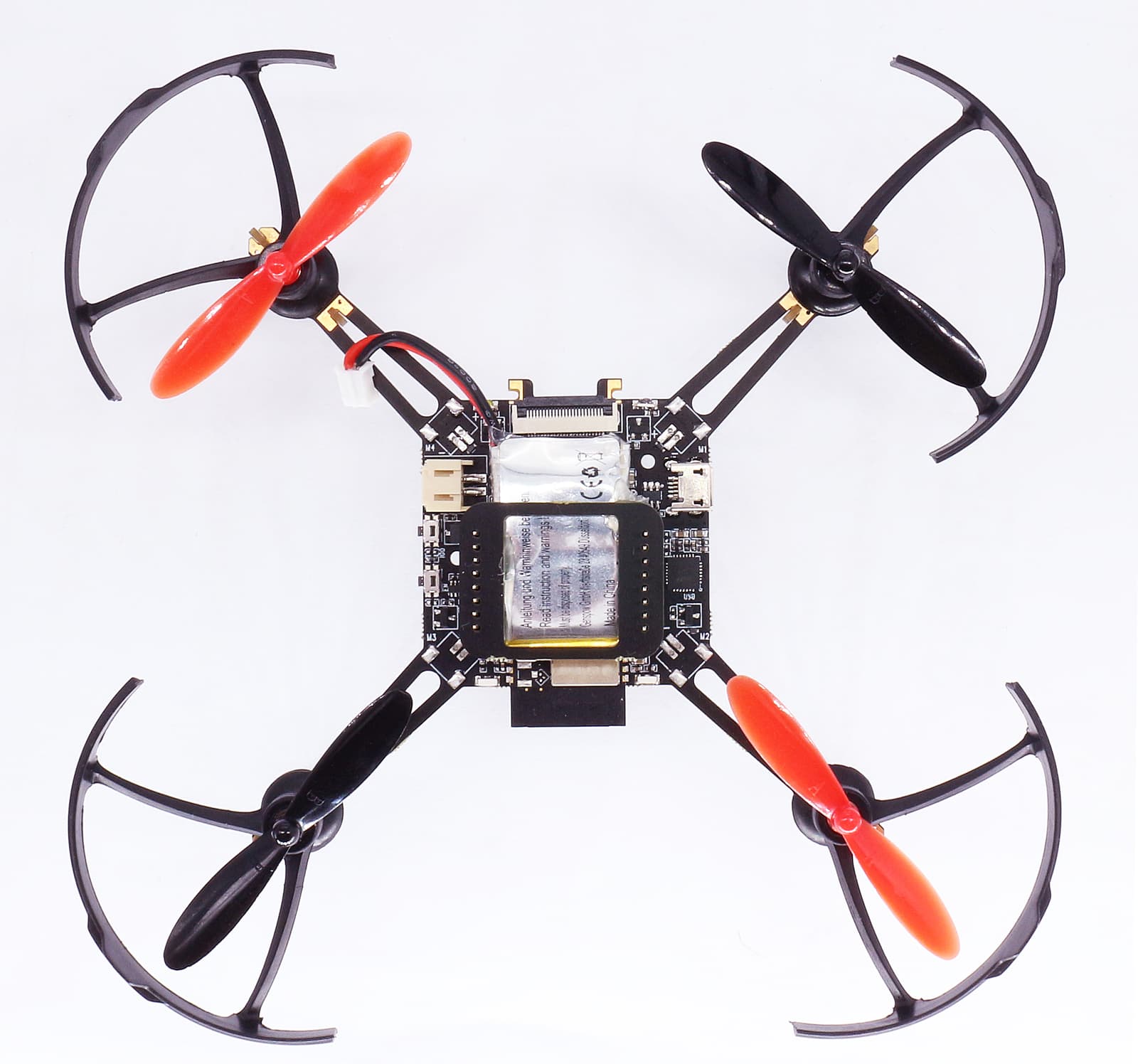

ESP-Drone, photo from its repository
Photo:@HoneyGrant (opens in a new tab)GPL-3.0-onlysource file (opens in a new tab)

3D preview converted from github.com/HoneyGrant/UAV at 6a6fb32, under GPL-3.0-only. View the original files from GitHub (470 KB) (opens in a new tab)

What it can do

Written by Robotheca from the project's documents.

  • Stabilize flight mode
  • Altitude-hold flight mode
  • Position-hold flight mode
  • APP control via Wi-Fi
  • Gamepad control via Wi-Fi
  • GPS navigation with waypoint setting
  • Optical flow navigation
  • Autonomous takeoff and landing

Bill of materials

This repository has no parts list Robotheca can read yet.

Build guide

The guide appears here as you scroll.

Guide by @HoneyGrant (README.md), under GPL-3.0-only. The English translation is by Robotheca, shared under the same license.

More guides

Wiring and electronics

Notes written by Robotheca from the project's documents.

Main parts

  • ESP32/ESP32-S2/S3 Wi-Fi chip (ESP-Drone)
  • STM32F405RGT6 microcontroller (F405)
  • ICM20602 gyroscope and accelerometer (F405)
  • LSM6DS33 gyroscope and accelerometer (OLDX-FC)
  • LIS3MDL magnetometer (OLDX-FC)
  • BMP280 barometer (F405)
  • MS5611 barometer (OLDX-FC)
  • NRF24L01 2.4G communication module (OLDX-FC)
  • VL53L0X/VL53L1X laser rangefinder (ESP-Drone/OLDX-FC)
  • Pixflow optical flow sensor (OLDX-FC)
  • GPS module (NEO-8M)
  • UWB module (INF)

Connections

  • ESP-Drone: ESP32/ESP32-S2/S3 connected to motors via PWM outputs, sensors via I2C/SPI, and powered by 2S-4S battery
  • F405: STM32F405 connected to MPU6000 via SPI, BMP280 via I2C, motors via 2*5 pin header or dedicated ESC interface, GPS & compass via dedicated port, receiver via PPM/SBUS, buzzer via dedicated port,
  • OLDX-FC: STM32F405 connected to ICM20602 and LSM6DS33 via SPI, LIS3MDL via I2C, MS5611 via I2C, NRF24L01 via SPI, GPS via UART1, optical flow via UART5, ultrasonic sensor via UART3, CAN bus via dedica

Schematics, boards and diagrams
